Car Parts Renault Spark Plug OEM 7700500180 Equal To RC9YC RFN58LZ

Good quality Motorcycle Spark Plugs for sales
Good quality Motorcycle Spark Plugs for sales
very nice product, and fast response, we will work together all the time

—— Abdulla

visit factory last Sep, and decide to place the order at once. Competive price, the most important is the quality, quite good

—— Ranny Medina F

I'm Online Chat Now

Car Parts Renault Spark Plug OEM 7700500180 Equal To RC9YC RFN58LZ

China Car Parts Renault Spark Plug OEM 7700500180 Equal To  RC9YC  RFN58LZ supplier
Car Parts Renault Spark Plug OEM 7700500180 Equal To  RC9YC  RFN58LZ supplier Car Parts Renault Spark Plug OEM 7700500180 Equal To  RC9YC  RFN58LZ supplier Car Parts Renault Spark Plug OEM 7700500180 Equal To  RC9YC  RFN58LZ supplier Car Parts Renault Spark Plug OEM 7700500180 Equal To  RC9YC  RFN58LZ supplier

Large Image :  Car Parts Renault Spark Plug OEM 7700500180 Equal To RC9YC RFN58LZ

Product Details:

Place of Origin: China
Brand Name: ANGELMAN
Certification: ISO9001:9002
Model Number: 7700500180

Payment & Shipping Terms:

Minimum Order Quantity: 10000PCS
Price: negotiation
Packaging Details: 10pcs/box, 400pcs/ctn
Delivery Time: 20days afer deposit
Payment Terms: T/T or western Union
Supply Ability: 1800000pcs/month
Contact Now
Detailed Product Description
Spanner Size: 16mm Outer Thread: 14*1.25mm
Thread Length: 19mm Central Electrode Material: Copper
Spark Plug: 1 Earthed Electrode Color: White

car ignition parts Renault spark plug OE 7700500180 equal to RC9YC RFN58LZ





Product Specifications





Thread M14x1.25
Reach 19 mm
Hex 16mm
Seat Type Flat
Gap 0.8mm
Heat Range 6
Electrode Type J Type
Resistor or Non-Resistor Resistor





REPLACEMENT SPARK PLUG FOR 7700500180



Brand Model
Beru 14FR-7DU
Beru UXT1
Beru UXT3
Beru Z15


OE NUMBERS



CITRON 5962.5G
CITRON 5962 7S
FIAT 9 GYSSR
PEUGEOT 5962 6K
PEUGEOT 5962 7R
RENAULT 77 00 274 154
RENAULT 82.00.020.796
RENAULT 6001544293
RENAULT 8200020796
RENAULT 7700 500 180
RENAULT 82 00 020791
RENAULT 8200021856
RENAULT 82 00 020 796
RENAULT 82 00 209 310
RENAULT 77 00 500 155
RENAULT 8200033622







Company Strength



A) Service

Listening customer’s request and provide the required parts

  • Through follow up of order
  • Fast delivery
  • Responsible after service



B) Competitive Price

  • Constant search for better prices in the market



C) Genuine Quality

  • Products are sourced from original Manufacturers from World Wide



D) Convenience

  • Knowledgeable team who can support your business transaction and relieve your work load




SPARK PLUG OUTLINE ANALYSIS AFTER USE



Overheating
Insulator skirt side was”blach white”shaped electrode ablation prematurely. Because premature ignition timing,cooling system adverse; using a low-grade gasoline, mixture too lean; spark plug into the combustion chamber and spark plug heat value too low; spark plug installation torque is not enough, the outer seal leak worse.

Insulator breakage
End of the spark plug insulator skirt cracking or breakage.The use of low-grade gasoline or cause premature ignition timing.

Oil wet
Hulled face screwed around and luminal surface portion of the insulator and the electrode surface adhesion side skirts with black wet shiny oil.Mainly piston rings, cyclinder wear and tear to because improper carbutetor adjustment


Normal operation
End of the spark plug insulator skirt was brown, brown or light gray, electrode erosion is very small, indicating that the spark plugs and the engine is matched


Too much coke
Side electrode and insulator attached to a thick layer of yellow skirt powder, is due to the use of leaded fuel additives caused


Hot combustion
Melting electrode, the center electrode and the side electrode of the port portion into a molten state. Because premature ignition timing, cooling system adverse; using low-grade gasoline, mixture too lean; spark plug into the combustion chamber and spark plug heat value too low; spark plug installation torque is not enough, the outer seal leak worse

Toner Blackened
Screwed steel face and cavity surface portion of the insulator side skirts and black carbon electrode surface is covered by sediments, causing severe spark plug flameout. Mainly due to the mixture is too thick, clogged air filter, choke improper use; excessive oil consumption, ignition time lag; prolonged low speed and the use of high heat value of the spark plug.

Lead Contamination
Insulator skirt side white powder or yellow,brown, green, and black lead color. Since tetraethyl lead in gasoline at low engine load operation of the skirt adhered to the end surface of the insulator, when the engine speed, high speed, full load operation, the temperature increases further, the spark plug insulator formed on the surface of the conductive lead compound due to temperature increased with the increase, eventually leading to fire the spark plug.




Flashover
Porcelain surface axially obvious traces the arc burning sparkle. Is due to prolonged use spark plug electrode burning, the gap is too large, high-voltage insulator jacket poor performance, aging; porcelain high-voltage lines and the gap is too large.








Mounting torque is too small
Deformation of the outer washer inadequate leak, resulting in insufficient cooling spark plugs. Spark plug could easily lead to overheating and even pillow melting electrode, porcelain skirt burst.

Corona
On the insulator layer of yellow scale. 2 is due to air under high voltage to 30000 volts is ionized impurities in the air is formed on the insulator attached


External damage
Electrode and insulator skirt severely deformed damaged, is due to incorrect use spark plug model, and the impact caused by cylinder

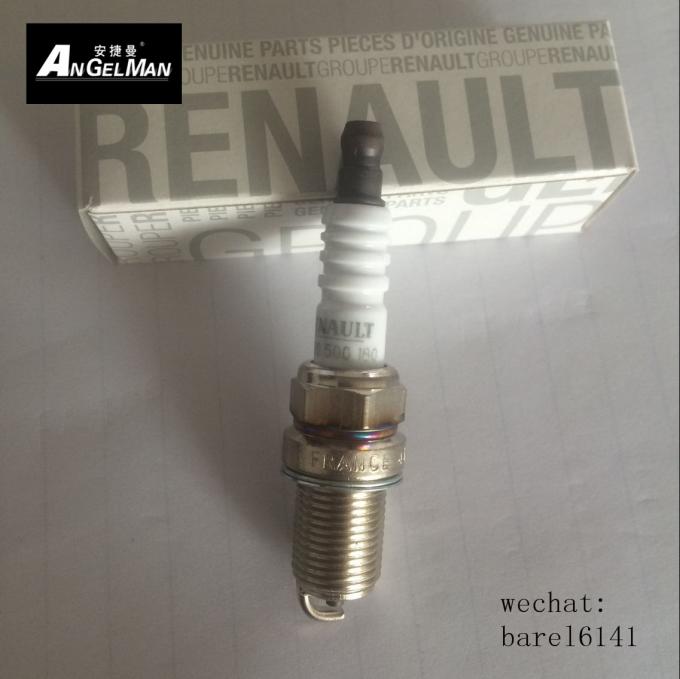

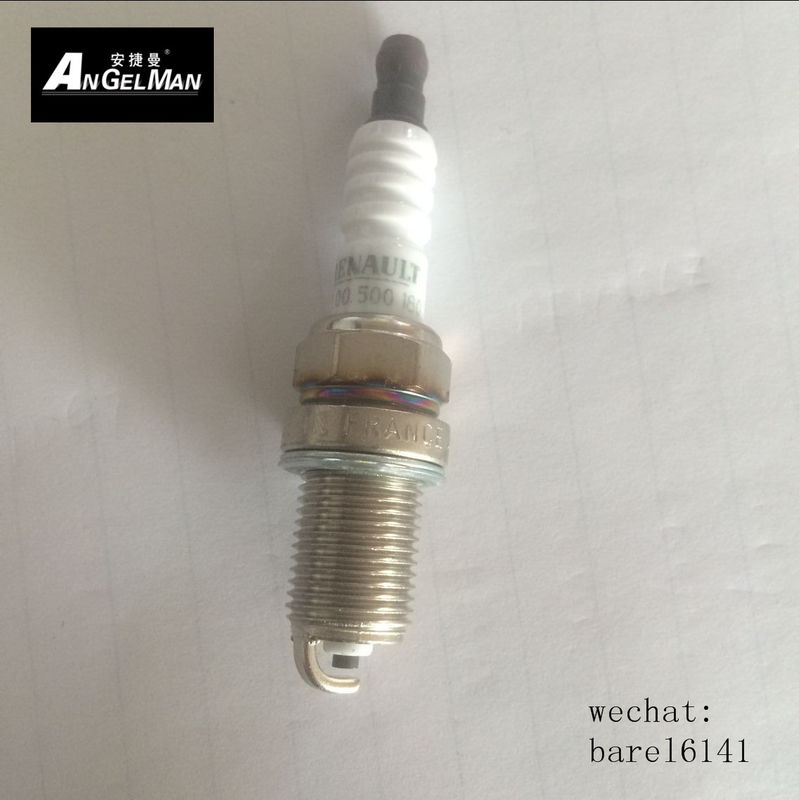

PICTURES FOR REFERENCE



Car Parts Renault Spark Plug OEM 7700500180 Equal To  RC9YC  RFN58LZ
