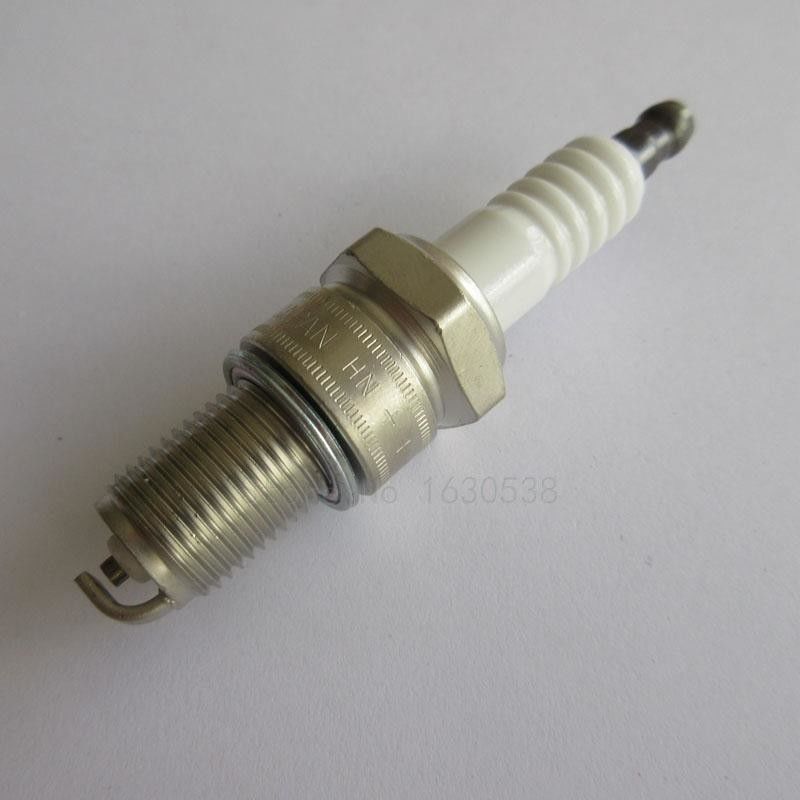

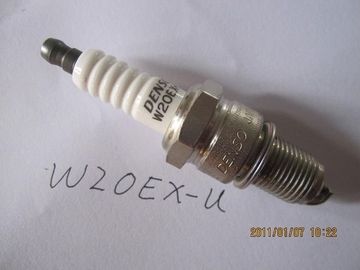

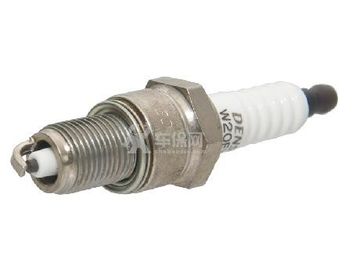

DENSO W20EX-U Toyota Spark Plugs Removable Cap 90999-09007 White

China DENSO W20EX-U Toyota Spark Plugs Removable Cap 90999-09007 White supplier

Large Image :  DENSO W20EX-U Toyota Spark Plugs Removable Cap 90999-09007 White

Product Details:

Place of Origin: China
Brand Name: ANGELMAN
Certification: ISO9001:9002
Model Number: W20EX-U

Payment & Shipping Terms:

Minimum Order Quantity: 10000PCS
Price: negotiation
Packaging Details: 10pcs/box, 400pcs/ctn
Delivery Time: 20days afer deposit
Payment Terms: T/T or western Union
Supply Ability: 1800000pcs/month
Detailed Product Description
Spanner Size: 16mm Outer Thread: 14*1.25mm
Thread Length: 26.5mm Central Electrode Material: Iridium
Spark Plug: 1 Earthed Electrode Gap: 0.8mm

DENSO SPARK PLUG W20EX-U removable cap FOR TOYOTA 90999-09007 same as F6TC





Product Specifications



DENSO W20EX-U Toyota Spark Plugs Removable Cap 90999-09007 WhiteDENSO W20EX-U Toyota Spark Plugs Removable Cap 90999-09007 WhiteDENSO W20EX-U Toyota Spark Plugs Removable Cap 90999-09007 White


AGM Type

F6TC

Thread

M14x1.25

Reach

19 mm

Hex

20.8 mm

Seat Type

Flat

Gap

0.8 mm

Electrode Type

J Type

Resistor or Non-Resistor

without Resistor

Electrode Enhancements

nickel Core Electrode









REPLACEMENT SPARK PLUG FOR W20EX-U



Brand Model
AC Delco 41804
AC Delco 42XLS
AC Delco 43XLS
AC Delco AC4
AC Delco R42XLS
Accel 114
Autolite 54
Autolite 63
Autolite 893
Beck Arnley 176-5070
Beru 14-7DU
Beru UXT2
Beru UXT6
Beru Z11
Bosch W7DC
Bosch WR7DC
Bosch WR7DC+
Bosch WR7DP
Bosch stk 7500
  N10Y
  N11YC
  N8L
  N9YC
stk 300
stk 302
Denso stk 3062
General Motors 5613112
General Motors 5613113
Lodge HL
Mighty M4G22
Mighty M4GR32
Mopar 4106122
Motorcraft AG32A
Motorcraft AG32C
Motorcraft AG34
Motorcraft AGS22C
Motorcraft stk 2
NGK 7611
NGK 7727
NGK BP6EA
NGK BP6ES
NGK BP6ES SOLID
NGK BP6EY
NGK stk 4007
NGK stk 7333
NGK stk 7727
NHSP F7TC
Prestolite 14G32
Torch F6F
Torch F6T
Torch F6TC

OE NUMBERS:

CITROEN/PEUGEOT 7826099300
CITROEN/PEUGEOT 596008
CITROEN/PEUGEOT 91517001
DAIHATSU 90048-51035
DAIHATSU 90048-51069
ISUZU 5-81380008-0
MAZDA 100377550
MITSUBISHI MS851104
MITSUBISHI MS851098
NISSAN B2401-89905
ROVER ERR743
ROVER RTC3571
ROVER GSP4462
SUBARU 490010053
SUBARU 380280102
SUZUKI 09482-00303
SUZUKI 99000-79384
TOYOTA 90098-20395
TOYOTA 8091976008
TOYOTA 80919-76008
TOYOTA 90919-01083
TOYOTA 90999-09007
TOYOTA 90919-01046
VOLVO 1367526




SPARK PLUG OUTLINE ANALYSIS AFTER USE



Overheating
Insulator skirt side was”blach white”shaped electrode ablation prematurely. Because premature ignition timing,cooling system adverse; using a low-grade gasoline, mixture too lean; spark plug into the combustion chamber and spark plug heat value too low; spark plug installation torque is not enough, the outer seal leak worse.

Insulator breakage
End of the spark plug insulator skirt cracking or breakage.The use of low-grade gasoline or cause premature ignition timing.

Oil wet
Hulled face screwed around and luminal surface portion of the insulator and the electrode surface adhesion side skirts with black wet shiny oil.Mainly piston rings, cyclinder wear and tear to because improper carbutetor adjustment


Normal operation
End of the spark plug insulator skirt was brown, brown or light gray, electrode erosion is very small, indicating that the spark plugs and the engine is matched


Too much coke
Side electrode and insulator attached to a thick layer of yellow skirt powder, is due to the use of leaded fuel additives caused


Hot combustion
Melting electrode, the center electrode and the side electrode of the port portion into a molten state. Because premature ignition timing, cooling system adverse; using low-grade gasoline, mixture too lean; spark plug into the combustion chamber and spark plug heat value too low; spark plug installation torque is not enough, the outer seal leak worse

Toner Blackened
Screwed steel face and cavity surface portion of the insulator side skirts and black carbon electrode surface is covered by sediments, causing severe spark plug flameout. Mainly due to the mixture is too thick, clogged air filter, choke improper use; excessive oil consumption, ignition time lag; prolonged low speed and the use of high heat value of the spark plug.

Lead Contamination
Insulator skirt side white powder or yellow,brown, green, and black lead color. Since tetraethyl lead in gasoline at low engine load operation of the skirt adhered to the end surface of the insulator, when the engine speed, high speed, full load operation, the temperature increases further, the spark plug insulator formed on the surface of the conductive lead compound due to temperature increased with the increase, eventually leading to fire the spark plug.




Flashover
Porcelain surface axially obvious traces the arc burning sparkle. Is due to prolonged use spark plug electrode burning, the gap is too large, high-voltage insulator jacket poor performance, aging; porcelain high-voltage lines and the gap is too large.








Mounting torque is too small
Deformation of the outer washer inadequate leak, resulting in insufficient cooling spark plugs. Spark plug could easily lead to overheating and even pillow melting electrode, porcelain skirt burst.

Corona
On the insulator layer of yellow scale. 2 is due to air under high voltage to 30000 volts is ionized impurities in the air is formed on the insulator attached


External damage
Electrode and insulator skirt severely deformed damaged, is due to incorrect use spark plug model, and the impact caused by cylinder
