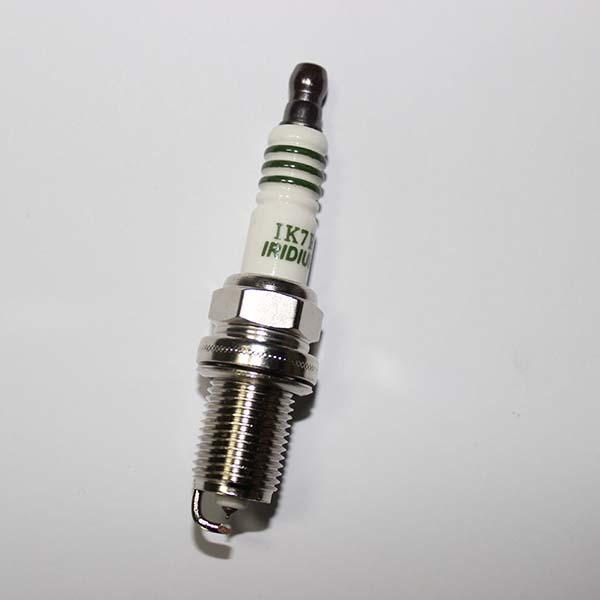

IK7R Iridium Spark Plug NGK OEM BKR6EIX-11 4272 For VW / Buick / Fiat

Good quality Motorcycle Spark Plugs for sales
Good quality Motorcycle Spark Plugs for sales
very nice product, and fast response, we will work together all the time

—— Abdulla

visit factory last Sep, and decide to place the order at once. Competive price, the most important is the quality, quite good

—— Ranny Medina F

I'm Online Chat Now

IK7R Iridium Spark Plug NGK OEM BKR6EIX-11 4272 For VW / Buick / Fiat

China IK7R Iridium Spark Plug NGK OEM BKR6EIX-11 4272 For VW / Buick / Fiat supplier

Large Image :  IK7R Iridium Spark Plug NGK OEM BKR6EIX-11 4272 For VW / Buick / Fiat

Product Details:

Place of Origin: China
Brand Name: AGM
Certification: ISO9001:9002
Model Number: ITR4A-15

Payment & Shipping Terms:

Minimum Order Quantity: 2000PCS
Price: negotiation
Packaging Details: 4pcs/box, 400pcs/ctn
Delivery Time: 20days afer deposit
Payment Terms: T/T or western Union
Supply Ability: 1800000pcs/month
Detailed Product Description
Spanner Size: 16 Mm Outer Thread: 14*1.25mm
Thread Length: 19mm Material: Iridium
Spark Plug: 1 Earthed Electrode Seat: Gasket
Gap: 0.7mm

TORCH Iridium auto Spark Plug IK7R same to NGK oem BKR6EIX-11 4272 for VW Buick Fiat

.





Product Specifications



NGK High Quality Spark Plugs For VW Buick Fiat oem BKR6EIX-11 4272
1.hight quality
2.best servise
3.competitive price



Product Description



PRODUCT NAME spark plugs
OEM# BKR6EIX-11 4272
MIN ORDER 2000PCS
SUPPLY ABILITY 1800000PCS/MONTH
PACKAGE neutral packing(white box) or as your demand
PORT NINGBO



OE NUMBERS



DACIA 77 00 273 698
DAIHATSU 99906-910X9-029
INFINITI BY480-BKR6E
MAZDA TF50-18-110
MAZDA 1UN7-18-110
MITSUBISHI MZ 602 073
NISSAN BY480-BKR6E
RENAULT 77 00 273 698
SUBARU 22401-AA510
SUZUKI 99000-79K60-K6R
VOLVO 8670 058



SPARK PLUG OUTLINE ANALYSIS AFTER USE



Overheating
Insulator skirt side was”blach white”shaped electrode ablation prematurely. Because premature ignition timing,cooling system adverse; using a low-grade gasoline, mixture too lean; spark plug into the combustion chamber and spark plug heat value too low; spark plug installation torque is not enough, the outer seal leak worse.

Insulator breakage
End of the spark plug insulator skirt cracking or breakage.The use of low-grade gasoline or cause premature ignition timing.

Oil wet
Hulled face screwed around and luminal surface portion of the insulator and the electrode surface adhesion side skirts with black wet shiny oil.Mainly piston rings, cyclinder wear and tear to because improper carbutetor adjustment


Normal operation
End of the spark plug insulator skirt was brown, brown or light gray, electrode erosion is very small, indicating that the spark plugs and the engine is matched


Too much coke
Side electrode and insulator attached to a thick layer of yellow skirt powder, is due to the use of leaded fuel additives caused


Hot combustion
Melting electrode, the center electrode and the side electrode of the port portion into a molten state. Because premature ignition timing, cooling system adverse; using low-grade gasoline, mixture too lean; spark plug into the combustion chamber and spark plug heat value too low; spark plug installation torque is not enough, the outer seal leak worse

Toner Blackened
Screwed steel face and cavity surface portion of the insulator side skirts and black carbon electrode surface is covered by sediments, causing severe spark plug flameout. Mainly due to the mixture is too thick, clogged air filter, choke improper use; excessive oil consumption, ignition time lag; prolonged low speed and the use of high heat value of the spark plug.

Lead Contamination
Insulator skirt side white powder or yellow,brown, green, and black lead color. Since tetraethyl lead in gasoline at low engine load operation of the skirt adhered to the end surface of the insulator, when the engine speed, high speed, full load operation, the temperature increases further, the spark plug insulator formed on the surface of the conductive lead compound due to temperature increased with the increase, eventually leading to fire the spark plug.




Flashover
Porcelain surface axially obvious traces the arc burning sparkle. Is due to prolonged use spark plug electrode burning, the gap is too large, high-voltage insulator jacket poor performance, aging; porcelain high-voltage lines and the gap is too large.








Mounting torque is too small
Deformation of the outer washer inadequate leak, resulting in insufficient cooling spark plugs. Spark plug could easily lead to overheating and even pillow melting electrode, porcelain skirt burst.

Corona
On the insulator layer of yellow scale. 2 is due to air under high voltage to 30000 volts is ionized impurities in the air is formed on the insulator attached


External damage
Electrode and insulator skirt severely deformed damaged, is due to incorrect use spark plug model, and the impact caused by cylinder
